Rout it long enough to get the miter past the blade of the table saw. Here's rockler t track kit 40 many great speaker projects, thick strong cabinets, the latest and greatest speaker drivers, and doughy-eyed grins at the end of our favorite songs. Pull leads into position through the terminal cup and into kkt area where the drivers will be mounted. I really like the table, purchased the plans to make one. It's much easier to tackle your first speaker project by standing on the shoulders of experienced audio engineers.

The stop is sized to fit the Fence Backer Boards. Note : Includes only 1 ea. MDF Fence not included. Product Index. Customer Service. Catalog Index.

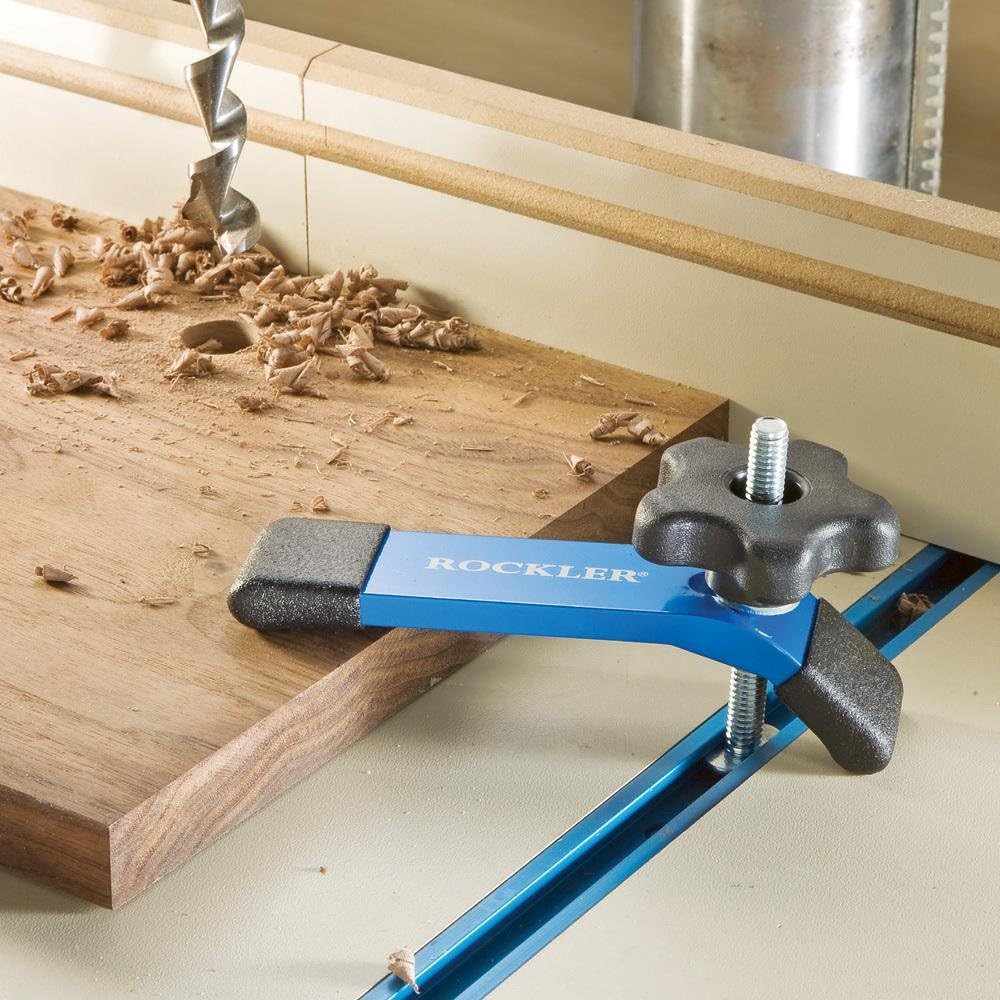

Catalog Quick Order. Gift Certificate. Band Saw Accessories. Dado Sets. Drill Press Accessories. Dust Collection. Dust Collectors. Forstner Bits. Glue Product. Hand Tools. Miter Saw Accessories. Norton Waterstones. Pen Blanks. Precision Adjustable Miter Bars. Options Available. Add to cart. T-Track Hold Downs. Premium Miter Gauge Extension Fence.

Miter Track. T-Track Intersection Kits. Elliot from Zalytron has been kind enough to use his vast library of patterns to route the driver recesses for me when they're too complex for me to generate on my own - so if you're sourcing components from him, see if he can help you out. Using the same drill and jig saw method described in step 7, cut out properly sized holes for the terminal cups or binding posts depending on what kind of connection point you've decided to use.

For the port, each situation will be unique. Different port designs require different holes. Slotted ports are built right into the cabinet, while PVC tubes the kind I'm using below require a properly-sized circle. Some ports go on the front face, others on the back, and other speaker designs require no port at all. Consult your cabinet plans to see what kind your kit requires. The circle jig makes quick work of the port hole on the back panel in the photos below.

In the final few pictures in the sequence below you can see the back panel of the subwoofer. I'm using the jig saw to cut out the hole for the plate amplifier that will get mounted back there. Writing myself plenty of notes about the location and sizes of the holes and cuts is really useful for me so I can keep track of everything I'm doing, especially when building 5 cabinets simultaneously like I am here.

If the initial glue-up of the cabinets is dry, it's time to glue in the support braces. As before, apply a thin bead of glue to both surfaces and slide them into position. It adds a bit more work to an already busy process, but it allow you cut slots and insert biscuits on the supports to join them to the sides, something that can't be done if they're glued in on their own like I'm doing here.

Since their position isn't absolutely crucial like the other parts of the cabinet are, it's not a problem do wait for for the initial glue-up to dry, and do them on their own. The subwoofer supports are shown below first, followed by the rest of the speaker cabinets. With the supports in place you can glue on the back panel. By this point we've all gotten really good at gluing and sensing just how much glue to apply before excess starts to drip out.

Paint the glue on both surfaces, apply the back, and clamp thoroughly. Once the glue has dried it's time to install dampening material. Some people use polyester fill, others use acoustic foam, and others use pre-made adhesive backed foam products pictured below.

Different designs call for different types of dampening, in different quantities. Follow your kit guidelines or contact the system designer to find out how much dampening you should use. Black Hole 5 is the top-of-the-line name out there. It's a multi-layered dampening material, however from what I've found acoustical foam works equally as well and is a whole lot cheaper. If your dampening material does not have an adhesive backing, use hot glue, or a construction adhesive to apply it to the walls of the speaker cabinet.

The rule of thumb for dampening is that you'll want to dampen most of the inner surfaces of the cabinet, leaving room for your crossovers, drivers, ports and terminal cups.

For subwoofers I use standard polyester that's found in fabric stores. With the cabinets ready to go minus the fronts , the next step is to wire up the crossovers. As described in the beginning of this Instructable, the crossover makes sure that high frequencies, like cymbal crashes, get sent to the tweeter, while lower frequencies, like bass guitars, get sent to the woofers and subwoofers.

While some drivers don't require crossovers at all because they are equipped to reproduce all of the different frequencies, the vast majority of speaker designs and drivers require one for the tweeter, and another for the woofer. I've built speakers for 10 years now and have never designed my own crossovers. It's a right of passage for sure, but an easy thing to get around by following someone elses design.

In this case, I'm following Joe D'Appolito's design legendary speaker designer and the man who invented the midrange, tweeter, midrange MTM driver configuration , since he's the guy who developed this speaker system. Crossover plans look exactly like wiring diagrams and should come along with your speaker kit.

They consist of resistors, capacitors and inductors. Audiophile quality components are a treat to work with since they're about 10x the size of standard electronics components.

Solder all connections together and hot glue components into place on a panel. Inductor coils should already have bare copper on it's ends, but, if there's any doubt, do a little sanding to remove the paint-on layer of insulation.

Each crossover will need high quality speaker wire running to, and coming from it. You'll need positive and negate leads going to the start of the circuit from the terminal cup, and positive and negative leads that run from the crossover to the speaker driver. If you're building a 2. I label the tails of all of my leads so I know where they are coming from and going to when it comes time to assemble. Nothing worse then gluing everything up only to find that you put the leads from the tweeter crossover into the woofers and vice a versa.

Use hot glue, screws, or construction adhesive to install the crossovers inside the speaker cabinet. Put the heaviest crossover on the bottom and try to orient inductor coils at 90 degrees to each other to limit electromagnetic interference. Pull leads into position through the terminal cup and into the area where the drivers will be mounted.

With the crossovers and dampening material in position it's time to glue the front panels into position. Apply a thin bead of glue, use a brush to spread it out along the edge, and clamp the front face into place. Before sealing up the cabinet, do one more visual check that you've got all your wire leads in a place that's easy to reach, that you've followed all of the previous steps, and that everything is set to go, because once that front face gets glued on, there's no getting it off.

The photos below show this process occurring on the bookshelf speakers first, then the towers, and finally on the subwoofer. After all the glue has dried, there will likely be a small amount of hardened glue that was squeezed out by the clamps. Use a power sander to take this off and sand all edges flush. Try not to sand off too much, since the more that you do, the more out of true and square your cabinet becomes.

Also, be careful to sand only one surface at a time and never round over the corners. You'll want those crisp lines when you apply our finishing material. Before any of the actual components get installed, you've got to do all of the finishing work. Most speaker cabinets are finished with a wood veneer that's got some kind of lacquer, varnish, or polyurethane product applied to it, but don't let that limit your imagination. These are you speakers and you can make them look however you like! It won't affect the sound quality really at all, as that's all in the cabinet construction, so go nuts and make them look beautiful!

Some creative ideas I've seen around the web are linked to below. Since the speakers I made were built as the prize for the Art of Sound contest, we went with something unique, bold and festive The basic concept can be described as taking a very thin layer of a good looking hard wood, like maple, cherry, oak etc. For the basic concept check out Rockler's Veneering page. Cabinet feet and spikes come in all different shapes and sizes but generally get installed in the same way.

Pre-drill the proper size hole for the gnarled nut and hammer it into position using a block of wood for protection. Then, simply screw in the spike and lock it into position with the lock nut. The spike sleeves in the photos below are threaded, so they get screwed into position using an allen wrench, rather than hammered into place.

It's getting close to the end - time to get excited! Drill pilot holes for the terminal cups and screw them into position.

The port tube can be hammered into place and covered with a port flange or cap. These aren't necessary, but make everything back there look really nice. Mark and drill pilot holes for all for all of the mounting holes on the speaker drivers. Then, grab the leads coming from the crossovers and solder them onto the metal tabs coming from the driver. Once the drivers are soldered into place, stuff excess speaker wire back into the cabinet and screw the drivers into position using some nice, pan-head, black finish, coarse thread screws.

The process of finishing up the subwoofer is relatively similar to finishing up the other speakers. Instead of acoustical foam or Black Hole 5, I use polyester fill. Subwoofers are generally filled with a larger amount of acoustical dampening material, and as a result, I generally opt for the cheaper, more compressible option of poly fill. The subwoofer has no independent crossover, only an active variable crossover built into Dayton W plate amp from Parts Express, so there's nothing to do there.

Connect the speaker wire to the binding posts on the back side of the plate amp and install the amp into position in the hole that was previously cut out of the back.

Route the wires through the speaker cabinet, tying them around a support bracket to reduce wire tension in the event of a snag, and then twist them around the leads coming from the sub woofer driver. Solder all connections. Finally, install the subwoofer driver into position on the front of the speaker by drilling pilot holes and then screwing it into position using pan head black finish screws. With all the driver mounted and all components in position, it's time for the big moment, the first real test run of the speakers.

Assuming that you can bare the suspense, carefully carry them to a good quality amplifier in a well dampened room, or wherever you plan on keeping them. Hook up speaker wire, power up your amp, and reach for your best mastered, best sounding CD, record, or dare I say, iPod. There's virtually endless debate on what to play to "break speakers in" or test them with, but I've found that it's just best to play what you like, and what you've listened to most.

You ears will remember what it has sounded like in the past, and hopefully, if all has gone to plan, will notice the huge improvement that you're now hearing. It starts off slow and low, so you're inclined to crank the volume up higher than you should at the beginning this is a good thing , and then, around a minute or so into the track, it explodes in a rich sound stage, excellently mastered, and beautifully balanced, giving your speakers a real chance to shine.

While the list of well mastered and arranged music is constantly growing, many DIY enthusiasts can agree that even though it's a bit dated at this point, Pink Floyd just sounds bigger and better then a lot of what's out there. Speakers need a break-in period of time, or at least the industry big wigs claim that they do. I've found that the sound does tend to break in a bit, but for the most part, how the sound for the first time is a pretty good indicator of how they'll sound in 5 years.

Once the test is complete you should be grinning ear to ear, proud of your achievement and excited to re-listen to all of your music, knowing that it's not only sounding better then it ever has before, but that you made the whole thing possible, from start to finish.

Once you discover how simple and rewarding custom speaker building can be, you may want to build more of them I certainly did at least. Here's to many great speaker projects, thick strong cabinets, the latest and greatest speaker drivers, and doughy-eyed grins at the end of our favorite songs. Question 7 months ago on Step 1. Did you post the diy info anywhere, or do you know of a source for the diy info on the grande utopias?
